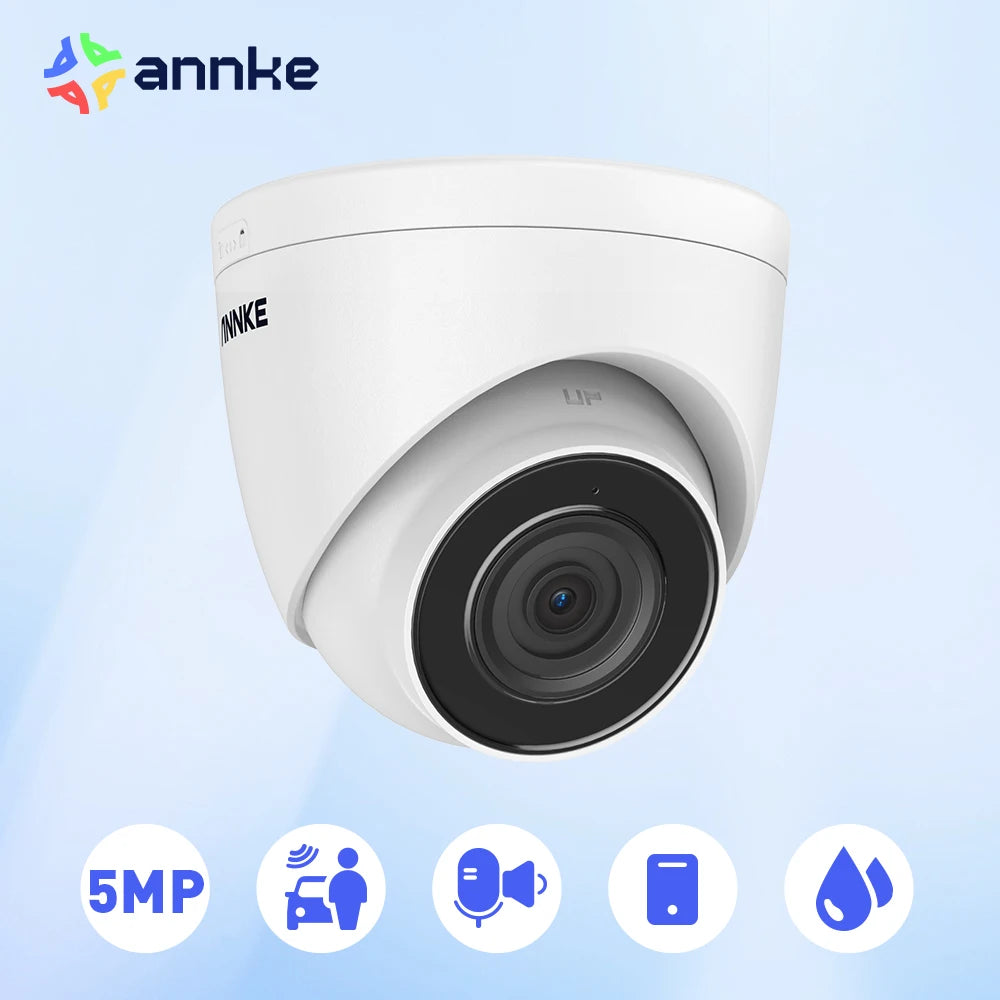

Smart Home 8MP 5MP IP Camera Outdoor Indoor 4K POE Security With Audio in
Smart Home 8MP 5MP IP Camera Outdoor Indoor 4K POE Security With Audio in
Couldn't load pickup availability
SPECIFICATIONS
High Definition: 5.0 Megapixels
High-concerned Chemical: None
Supported Operating Systems: No
Lens (mm): 4mm
Lens (mm): 2.8mm
Style: Turret Camera
Connectivity: RJ45
Installation: Ceiling
Installation: Wall Mounted
Scene: Indoor and outdoor
Color Night Vision: YES
Megapixels: 8MP
Video Compression Format: H.264
Video Compression Format: H.265
IR Distance(m): 30m
Color: WHITE
Color: black
Power Mode: Mains Electricity
Alarm Action: FTP Photo
Alarm Action: telefon Alarm
Alarm Action: Email Photo
Model Number: I51DS/I91DL
Supported Mobile Systems: Windows Mobile
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
AI Functions: Human Detection
IP Rating: IP67
Special Features: Waterproof / Weatherproof
Power Supply(V): DC12V
Audio Output: 1CH BNC
Sensor: CMOS
Shell Material: plastic
Power Supply: Normal
Rechargeable Battery: none
Audio Input: Built-in Microphone
pixel: 5MP 8MP
Special Features 1: ip camera
Special Features 2: security protection
Special Features 3: annke security camera
Special Features 4: poe camera
Special Features 5: home audio video
Special Features 6: annke 4k poe camera
Special Features 7: IP66 ip camera
Audio: Built-in microphone,Audio recording
Special Features 8: 5MP Dome security protection
3K 5MP Main Features:
★ 3K 5MP IR Network Camera with 16:9 image scale
★ 2.8mm/4MM lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in Microphone, record with audio
★ Built-in microSD/SDHC/SDXC Slot, up to 256 GB
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
|
IP Camera |
||
|
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
|
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
|
Audio Input |
Built-in Microphone, record with audio |
|
|
Lens |
4 mm/2.8mm |
|
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
|
Angle of View |
4MM: Horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90° 2.8MM: Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
|
|
Number of Infrared LEDs |
2 pcs |
|
|
Night Vision Distance |
Up to 100 ft/30 m |
|
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
|
|
ONVIF |
Support 4MM Lens |
|
|
API |
2.8MM Lens :Open Network Video Interface |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
|
Privacy Mask |
4 programmable polygon privacy masks |
|
|
General Function |
Mirror,rotate,password protection,video tampering alarm, remote access |
|
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White |
|
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
|
Dimension (L X W X H) |
Ø 110 × 100.8 mm (Ø 4.3" × 4.0") |
|
|
Weight |
0.6 lb./270 g |
|
8MP Key features:
★ 4K smart dual light network camera
★ 4mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
|
IP Camera |
||
|
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
|
Max resolution |
3840*2160(8MP) |
|
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
|
Audio Input |
Built-in Microphone, record with audio |
|
|
Lens |
4 mm |
|
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
|
Supplement Light Range |
Up to 30 m |
|
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
|
Privacy Mask |
4 programmable polygon privacy masks |
|
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White & Black |
|
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67 |
|
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
|
Weight |
0.6 lb./285 g |
|
How to choose a lens? 2.8MM or 4MM?
1. Perspective.
*The 2.8mm camera has a wide viewing angle and is suitable for installation indoors or in small areas.
*The 4mm camera angle of view is narrow, suitable for installation outdoors or in large areas
2. Imaging effect.
*The 2.8mm camera has a clear image at close range.
*The 4mm camera has a clear image at a long distance.
